Please check out the video below for an overview of the Main Volume control and Matrix Mixer. Then, consult the sections on this page for additional details.
Main Volume
Helix Stadium’s large Volume knob controls the level of one output pair at a time (or more than one, if outputs are linked)—1/4”, XLR, or Phones.
-
Press the 1/4”
, XLR
, or Phones
output button to select which output you want to control.
-
Turn the large Volume knob

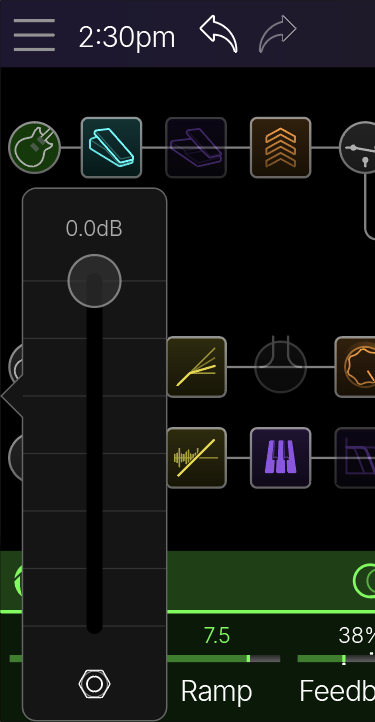

. The Volume panel briefly appears with active metering for the overall signal at the selected output (see below).
Worried that someone (or your guitar cable) might bump the Volume knob mid-show? Stop taping it down! Volume knob control can be quickly disabled.
-

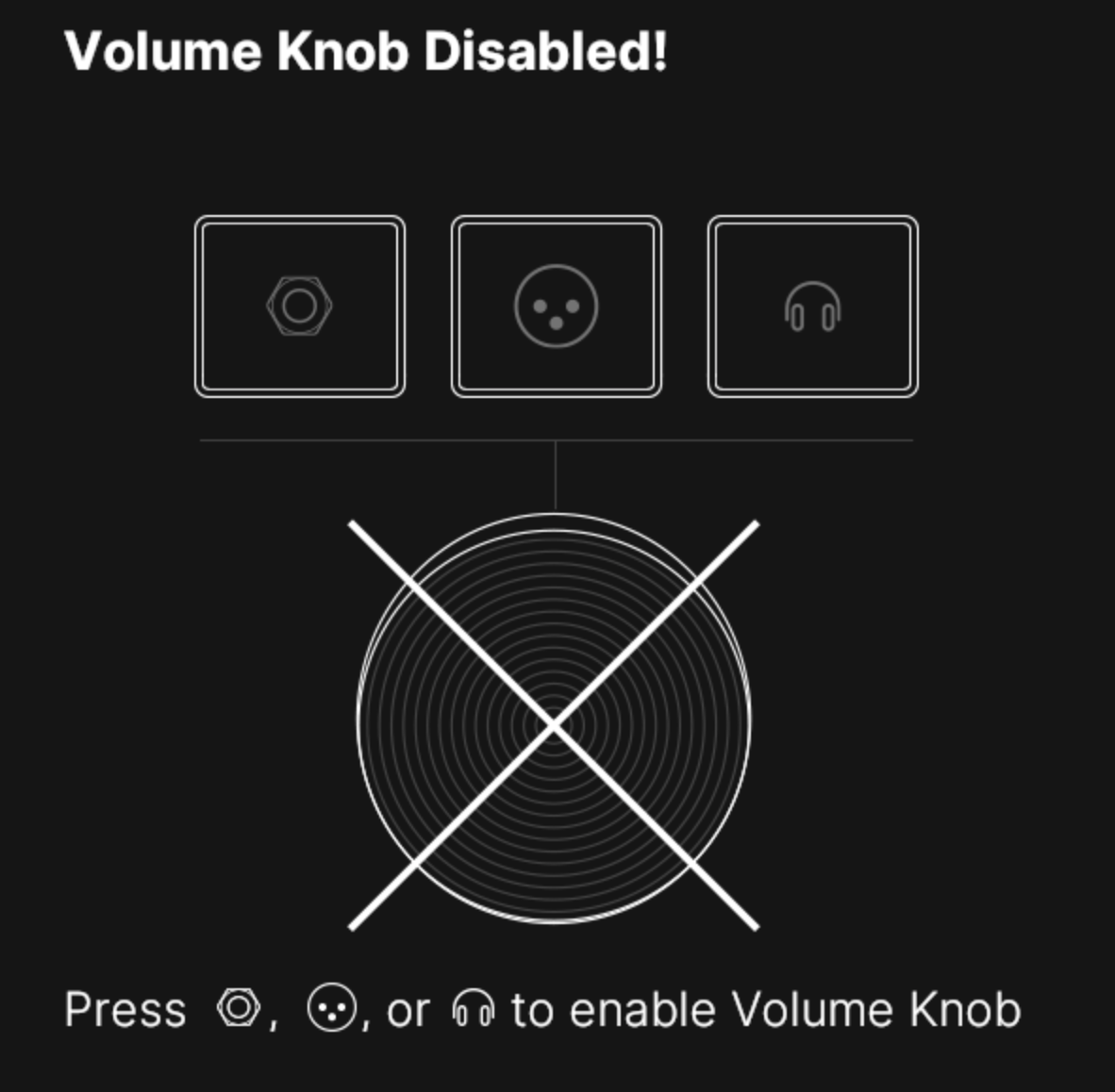

Press and hold the currently lit output button(s) to completely disable Volume knob control. Turning the Volume knob while it's disabled displays an alert (see below).
-
Press any output button to re-enable the Volume knob.
Matrix Mixer

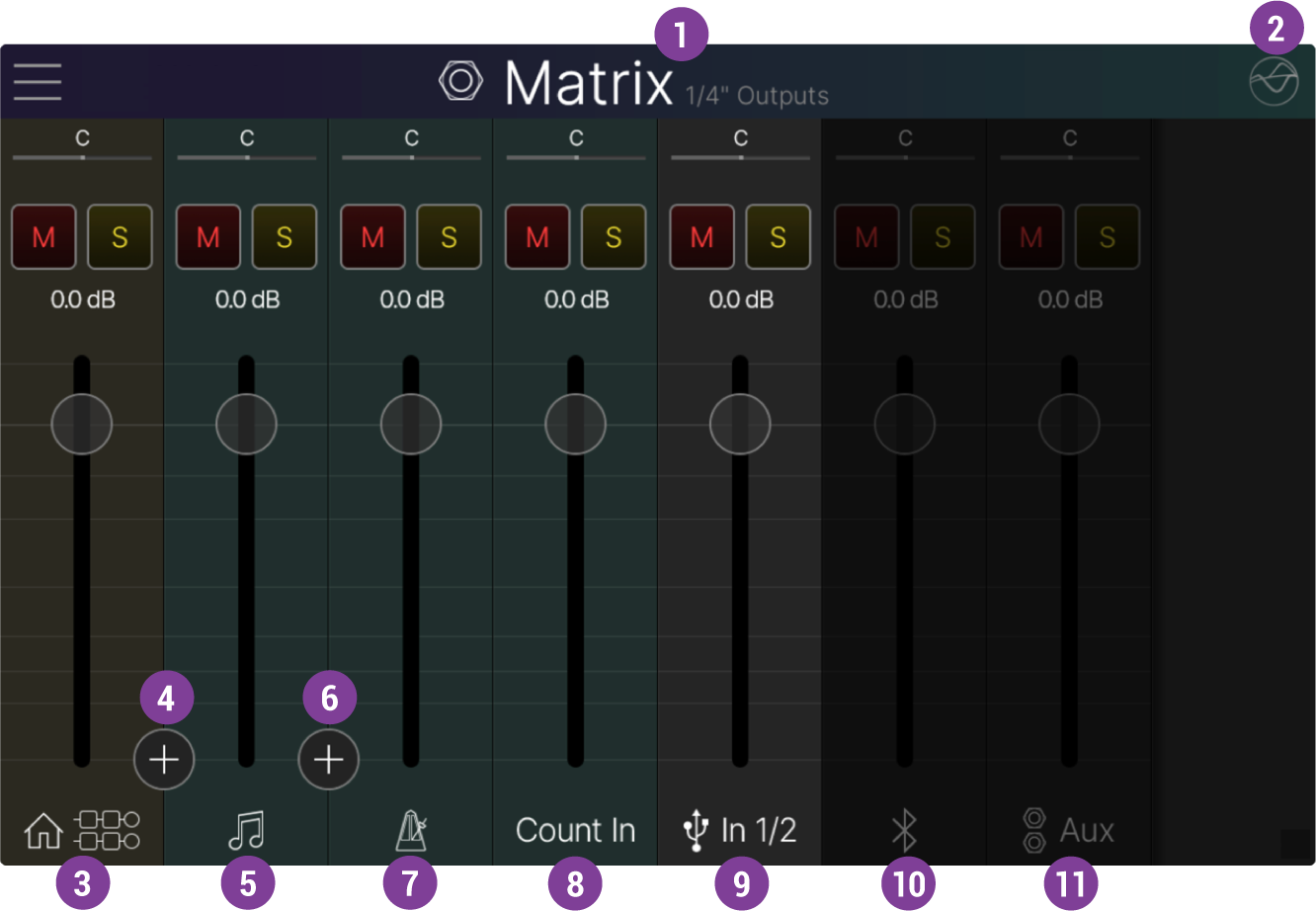

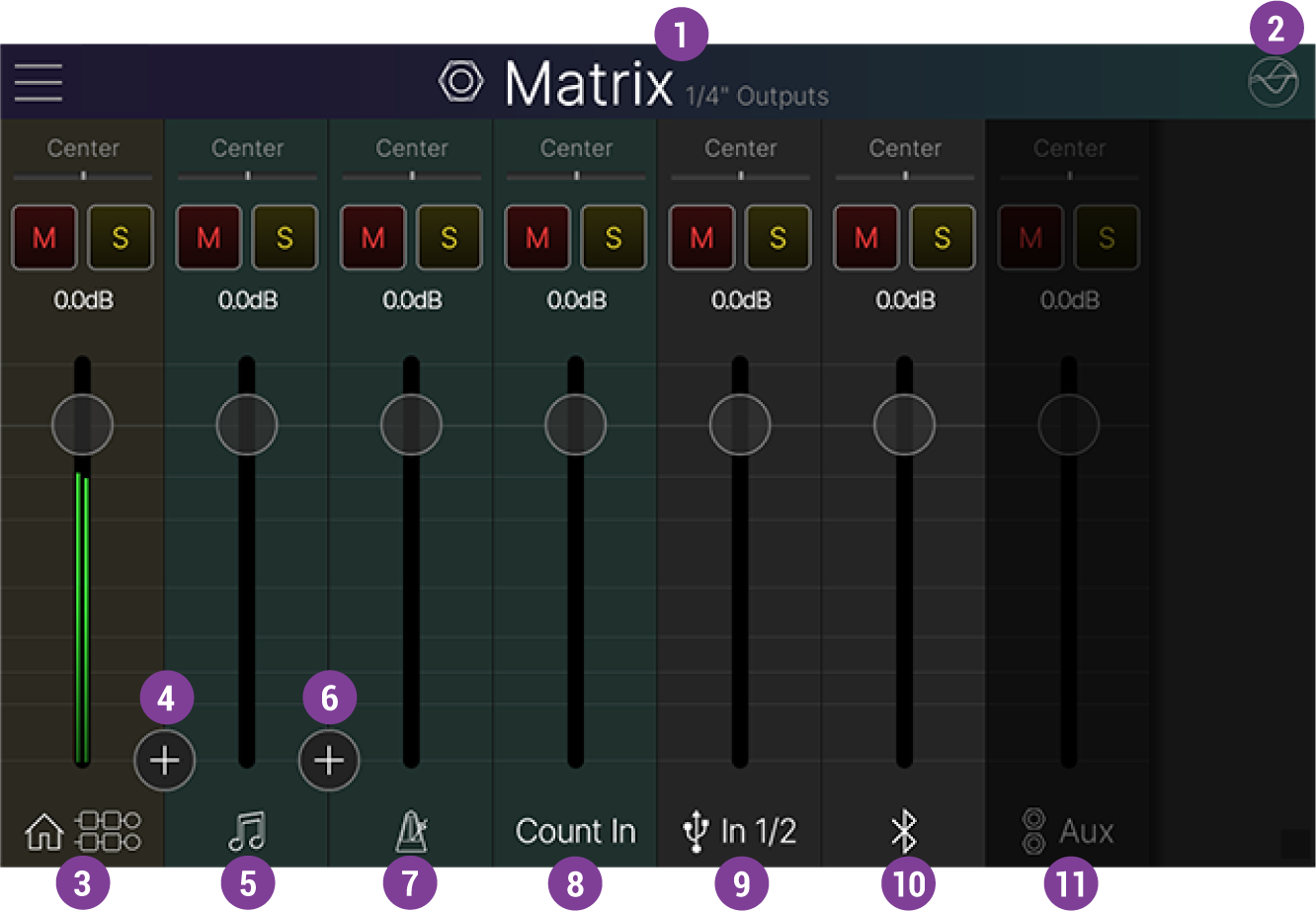

The Matrix Mixer lets you quickly mix the numerous signals going through Helix Stadium. What’s more, the 1/4”, XLR, and Phones outputs get their own Matrix layer so you can send a completely different monitor mix to, say, the 1/4” outputs feeding your on-stage playback system, the XLR outputs feeding the Front of House console, and the Phones output feeding your In Ear Monitors or drummer. Each Matrix layer provides real-time metering, level, pan, mute and solo control over the 4 stereo paths on the Home > Edit screen, 8 stereo tracks on the Song screen, Click, Count In, USB In 1/2 (for monitoring your DAW), Bluetooth audio (for jamming along with Apple Music®, Spotify®, or YouTube™), and Aux In. (Aux In is unavailable unless Global Settings > Ins/Outs > Return 1/2 Type is set to Aux In.) Each Matrix output also gets its own Global EQ.
Note: All metering in the Matrix Mixer is “Pre-Fader” (i.e., each meter displays the signal level before its channel fader’s level is applied).
Further, you can “link” the Stadium outputs so that any two—or all three—outputs are controlled from the same Matrix Mixer layer and main Volume knob. See Linking Outputs for details.
-
Press the lit 1/4”
, XLR
, or Phones
output button to open that output’s Matrix Mixer.
-
To view the Matrix Mixer for a different output, press that output button.
Tip: Matrix Mixer controls can also be controlled remotely via MIDI CC messages. See MIDI.
For All Matrix Mixer Channel Strips:
Adjusting the Matrix Mixer’s controls determines the mix heard from the selected output (1/4”, XLR, Phones, or linked outputs).
-
Tap and drag a channel strip’s vertical Fader
, or turn Knob 1~8 beneath the respective fader to adjust its level. Press the Knob 1~8 to reset the fader to 0.0 dB. The fader’s current setting value is shown in white at the top of each channel.
-
A multi-color level meter is displayed on each channel for reference.
-
Tap a channel’s Pan slider
to open the Pan panel and drag to adjust its Left/Right stereo balance. Tap the Reset button within the Pan panel to reset it back to Center.
-
Tap the Mute button
to mute the channel. Tap again to un-mute the channel.
-
Tap the Solo button
to mute all other non-solo-enabled channels. Tap again to un-solo the channel. (Note that the currently lit Output button flashes when any channels are solo-enabled, serving as an indicator when you’re in other screens.)
-
Tap the Solo buttons of multiple channels to add them to the solo bus.
-
Tap-hold any enabled Solo button to clear all solos.
-
-

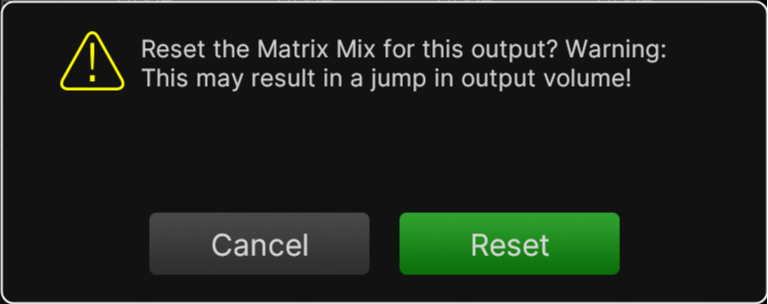

Tap and hold on the “Matrix” title at the top of the screen, and a prompt will appear alerting you that things could get loud (since some of your channel levels might currently be set significantly lower than the default 0.0 dB). Note that by default, the main output volume (the large Volume knob) is not reset—you can check the “Reset output volume?” box to reset it to 0.0 dB as well.
-
Tap Reset and all the current Matrix Mixer’s controls to their initial defaults (Level to 0.0 dB, Pan to Center, and Mute and Solo to off).
-

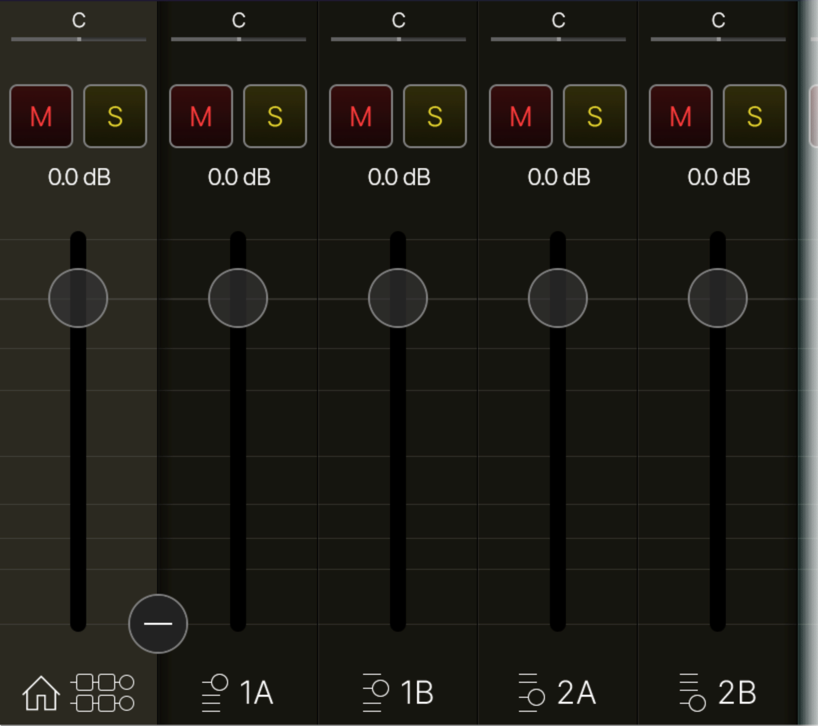

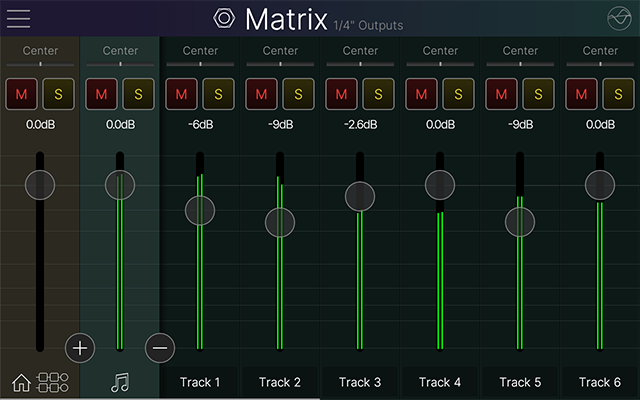

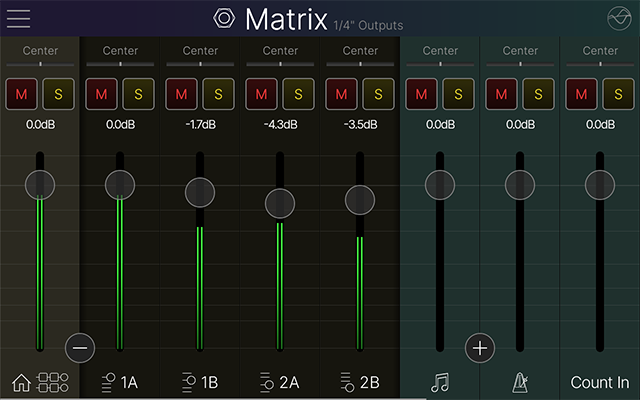

Swipe the screen left or right to access all channels when the Home Path or Song Track channels are displayed.

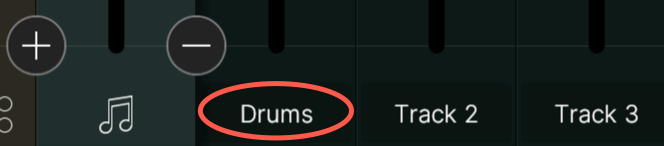

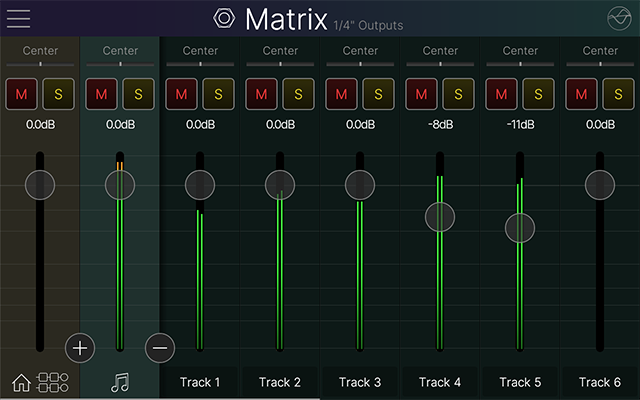

Tip: When a song is uploaded from the Helix Stadium application, its track names are automatically added for the labels at the bottom of each Song Track 1-8 channel, as shown below. Optionally, you can tap the label for any Song Track channel to edit the name. These names are saved individually with each song. Also see Song Settings.
Linking Outputs
Man, what a pain to constantly switch back and forth between outputs just to change Volume or tweak a Matrix cue mix! If you’d prefer to keep things simple, you can link any two—or all three—outputs so that they share the same Matrix Mixer layer and Volume knob control.
-

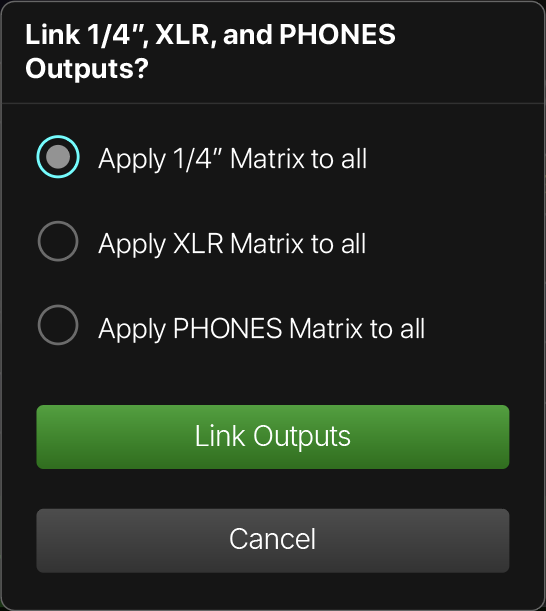

Press and hold two (or all three) output buttons for 2 seconds. A dialog appears, asking which output’s Matrix layer you want as the reference (see below).
-
Choose the desired output reference and then tap Link Outputs. To unlink outputs, press and hold the linked output buttons again.
Note: Global EQ remains independent per output, regardless of whether any outputs are linked.
