The Blocks

In the world of Helix Stadium, blocks are objects that represent various elements of a preset, such as amps, preamps, cabs, effects, splits, merges, loopers, inputs, outputs, and more. Tap an empty position on a path to choose the type of block you wish to add.

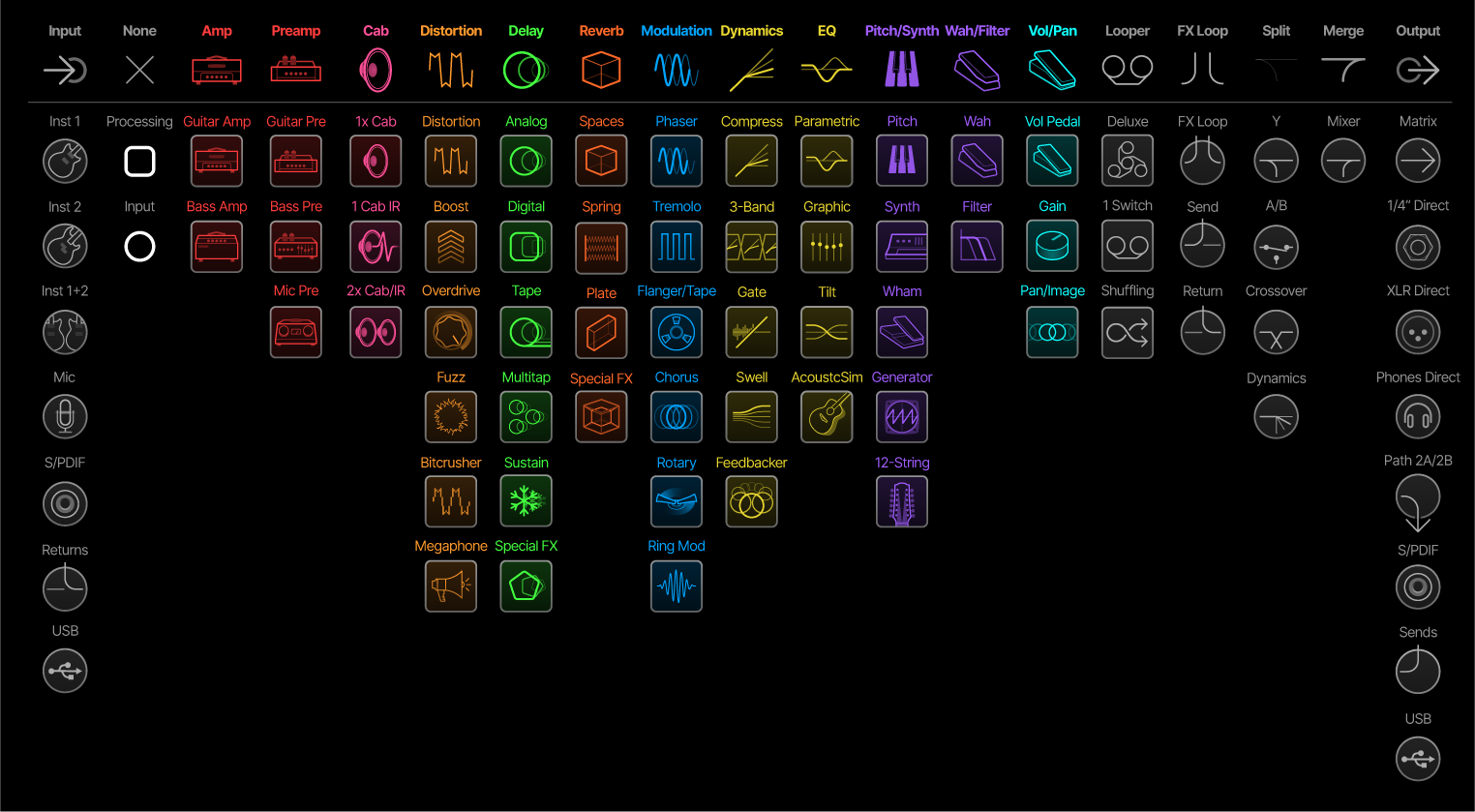

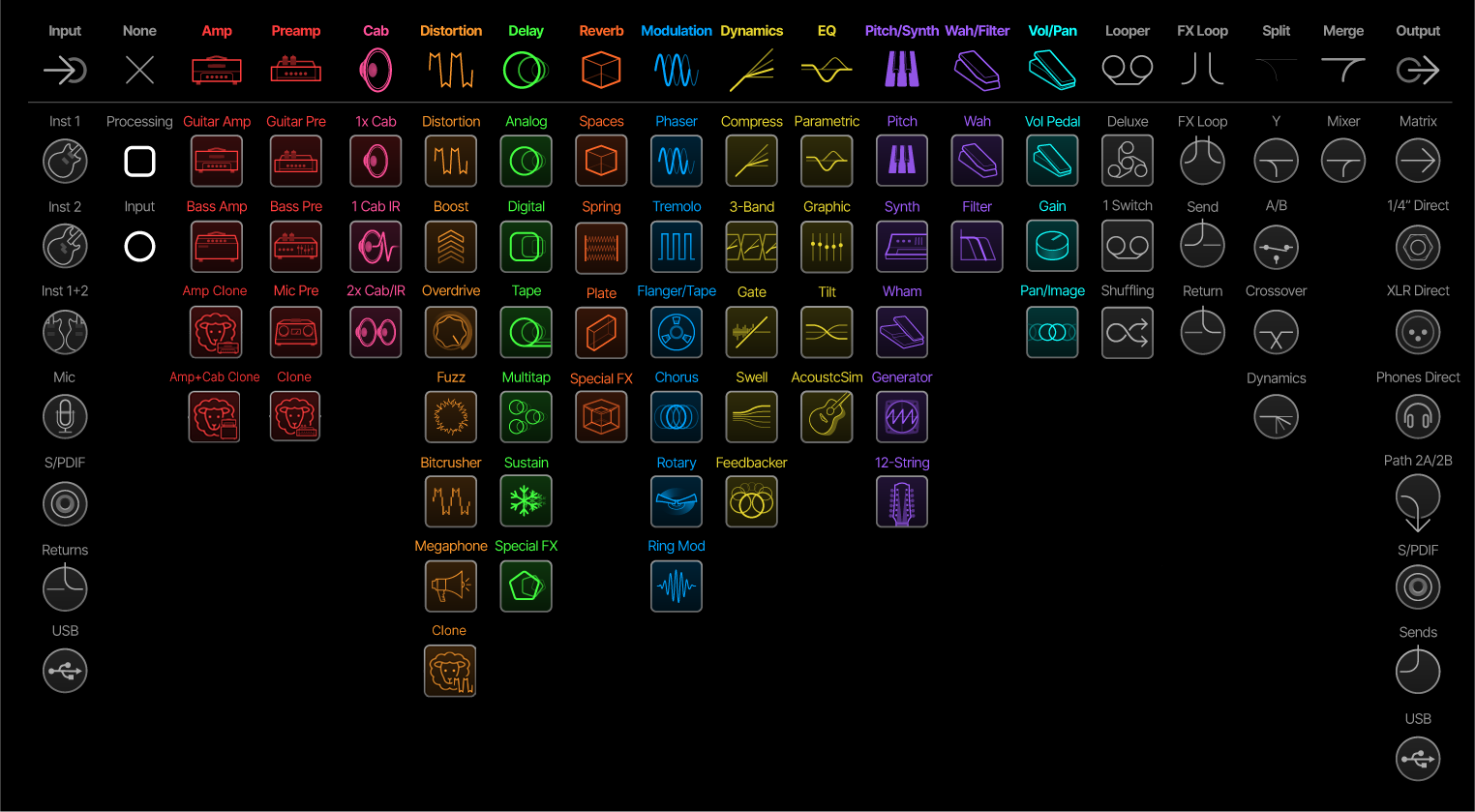

Helix Stadium’s block types*

*Note: Icon_XL.png Helix Stadium XL includes Instrument 1+2, Instrument 1, and Instrument 2 options for its Input blocks. Helix Stadium offers a single Instrument option. All Amp, Cab, and Effect blocks are identical between Helix Stadium XL and Helix Stadium.

The following pages include information and tips for using each Block type.

Tip: New for Version 1.4! Several new Agoura™ Amp and Effect models are now added:

Agoura Amps

  • Brit SL100: four different models are included here! Based on* Marshall®JMP 1959 Super Lead 100 heads from 1967, 1968, 1970, and 1971, each offering Normal, Bright, and Jumped Channels.

Brit SL100
  • Omega Granophyre: based on* Omega Ampworks™ Granophyre 100 Watt, 6L6 head, with Low and High inputs.

Omega Granophyre
  • Prosecutor: Ben's new Agoura version of the original Helix Litigator amp.

Prosecutor

Distortion Models

  • Rock Box Dist: based on* the Z.Vex™ Box of Rock™ Distortion circuit.

  • Rock Box Boost: based on* the Z.Vex Box of Rock Boost circuit.

Rock Box, Distortion and Boost
  • PortaBox 424: based on* the JHS Pedals® 424 Gain Stage.

PortaBox 424
  • Mercator: based on* the preamp circuit of the Ben Adrian Cartographer amp.

Mercator

Modulation Models

  • Essex Vibe: based on* the Vibrato circuit of the Vox® AC-30 with Top Boost amp.

Essex Vibe
  • Dimension W: based on* the BOSS® Dimension C DC-2W chorus.

Dimension W

For the complete, current lists of all Amp, Cab, and Effect Models included in Helix Stadium family products and the original gear they are based on, please see the Helix Stadium Model List below.

*See US Registered Trademarks. All product names used in this document are trademarks of their respective owners, and neither Yamaha Guitar Group nor Line 6 is associated or affiliated with them. These trademarks appear solely to identify products whose tones and sounds were studied by Line 6 during sound model development.

Helix Stadium Model List

To follow is the complete, current list of Amp, Cab, and Effect models included in Helix Stadium. To view this content directly on the Line 6 website, please visit:
Line 6 | Helix Stadium Models
